POP Vs Gypsum Vs PVC Vs Grid False Ceiling – An Ultimate Comparision
A false ceiling is a secondary ceiling, also known as dropped ceiling or suspended ceiling because the false ceilings are suspended below the primary ceiling by using wires or struts. A false ceiling is installed beneath the main structural ceiling of a room or building. In this article, we will discuss all POP Vs Gypsum Vs PVC Vs Grid False Ceiling.
It is created by suspending a grid or framework of metal channels or wooden battens from the main ceiling and then attaching panels or tiles to this framework. The resulting space between the two ceilings is often filled with insulation material or used to conceal electrical wiring, plumbing, air conditioning ducts, or other utilities.

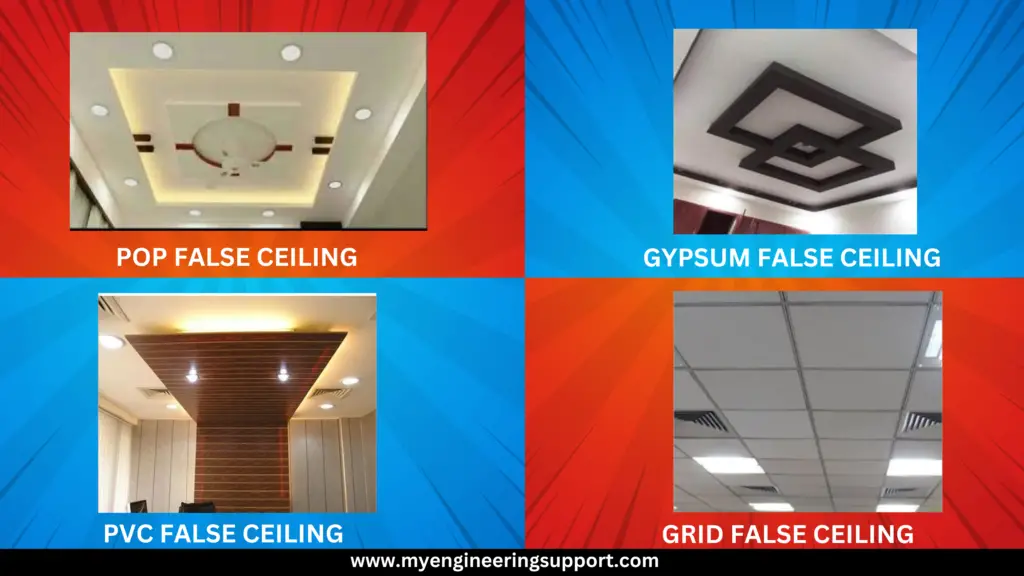

POP Vs Gypsum Vs PVC Vs Grid False Ceiling
POP, Gypsum, PVC, and Grid false ceilings serve both functional and aesthetic purposes. Functionally, they can improve acoustics by reducing sound transmission between floors or rooms, enhancing thermal insulation, providing a barrier against fire and moisture, and accommodating the installation of lighting fixtures, ventilation systems, or speakers. Aesthetically, false ceilings offer numerous design options to enhance the overall appearance of a space. They can be customized with different types of panels, tiles, or finishes to create unique visual effects, improve lighting distribution, or create a more modern and streamlined look.
The materials used for false ceilings vary depending on the desired function, budget, and aesthetic preferences. Each material offers different properties in terms of fire resistance, sound absorption, durability, moisture resistance, and design flexibility.
The most popular false ceilings are POP, Gypsum, PVC, and Grid false ceilings and these are widely used in various settings, including residential homes, offices, commercial buildings, hospitals, schools, theaters, and hotels. They provide practical solutions for concealing structural elements and improving the overall functionality and visual appeal of a space.
The POP Vs Gypsum Vs PVC Vs Grid False Ceiling all four have unique characteristics, advantages, and applications. The choice of material and design depends on factors such as budget, functionality, aesthetics, and the specific requirements of the space in which it is installed.
2). What is the Type of Most commonly used False Ceiling
The most commonly used false ceilings are POP, Gypsum, PVC, and Grid of metals or fiber. Except this aluminum, wood, and asbestos sheets are also used for false ceiling material, but here we discuss only popular and most commonly used false ceilings which are –
i). POP (Plaster of Paris) False Ceiling
ii). Gypsum False Ceiling
iii). PVC False Ceiling
iv). Grid False Ceiling

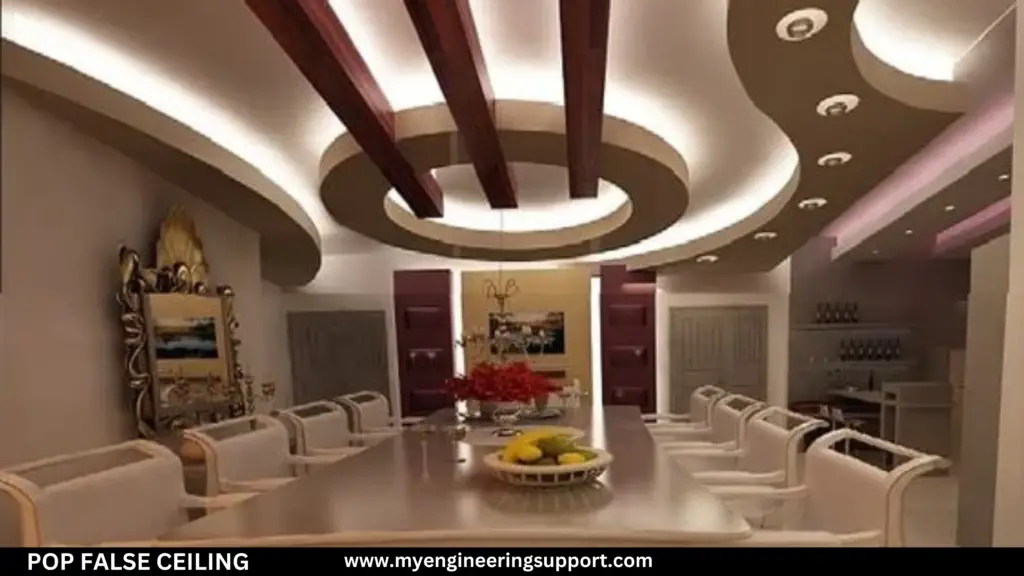

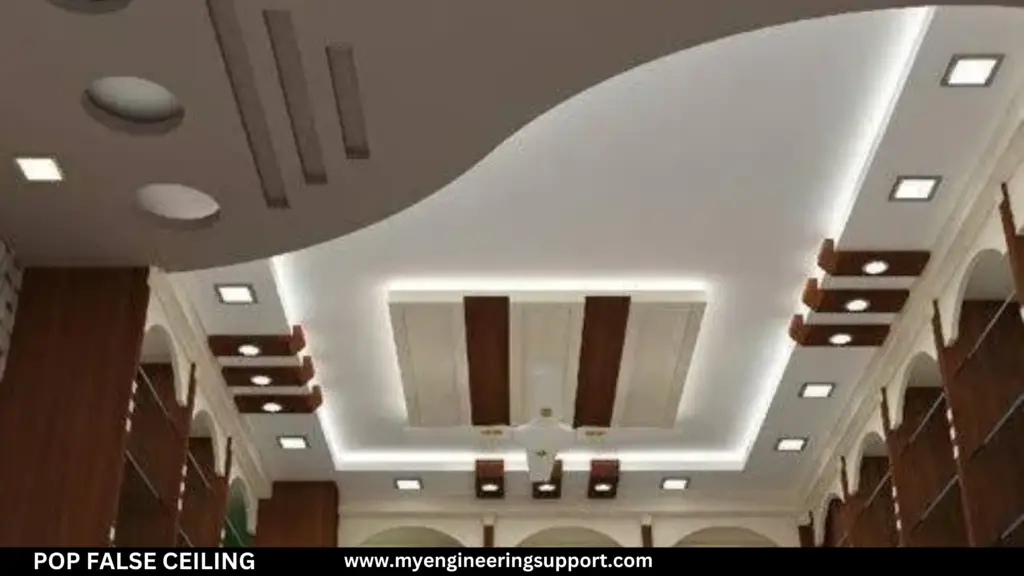

2.1). POP (Plaster of Paris) False Ceiling
POP false ceiling is a type of suspended ceiling that is created using plaster of Paris, a versatile and commonly used building material. It is a popular choice for interior design and construction due to its aesthetic appeal and functionality. A false ceiling refers to a secondary ceiling that is installed below the primary structural ceiling. It is used to enhance the overall appearance of a room, hide ducts, electrical wires, and other unsightly elements, and provide better acoustics and insulation.
POP false ceilings are constructed by creating a framework of metal channels or wooden battens, which are attached to the primary ceiling. The framework forms a grid-like structure, and plaster of Paris is then applied over it to create the desired design and texture. The plaster of Paris is mixed with water to form a paste, which is then applied in layers to achieve the desired thickness.
One of the main advantages of POP false ceilings is their versatility in terms of design. They can be molded into various shapes, curves, and patterns, allowing for creative and unique designs that complement the overall interior theme of the space. Additionally, POP false ceilings can be customized with different finishes, such as smooth, textured, or even painted with decorative patterns or motifs.
Another benefit of POP false ceilings is their ability to provide better acoustics. The additional layer helps to absorb and dampen sound, reducing echoes and improving the overall sound quality within a room. Furthermore, POP false ceilings can also enhance insulation properties by creating an air gap between the primary ceiling and the false ceiling, helping to regulate temperature and reduce energy consumption.
POP false ceiling is relatively durable and long-lasting when properly installed and maintained. They are resistant to moisture, fire, and termites, making them suitable for a variety of environments, including residential, commercial, and institutional spaces.
POP Vs Gypsum Vs PVC Vs Grid False Ceiling

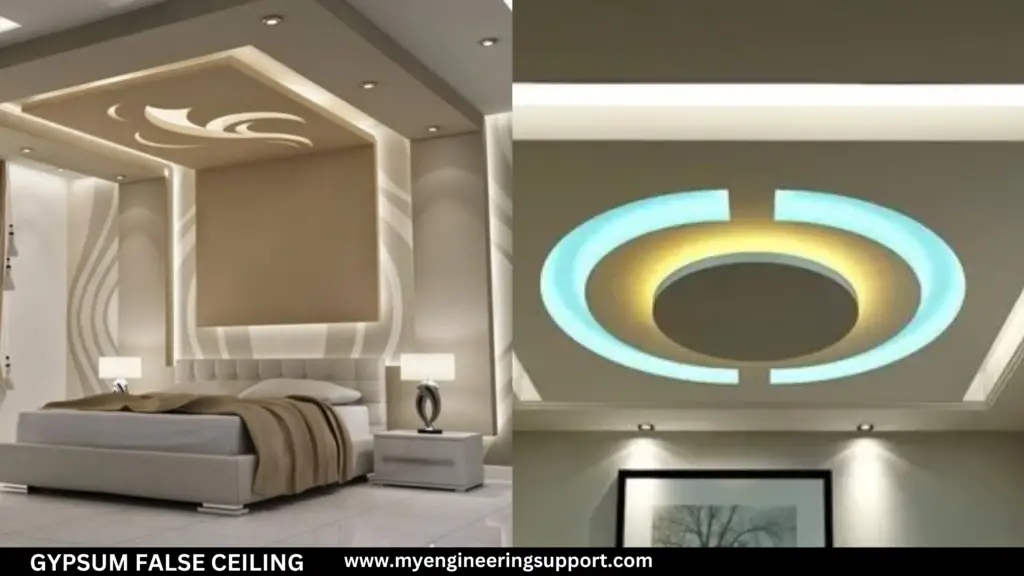

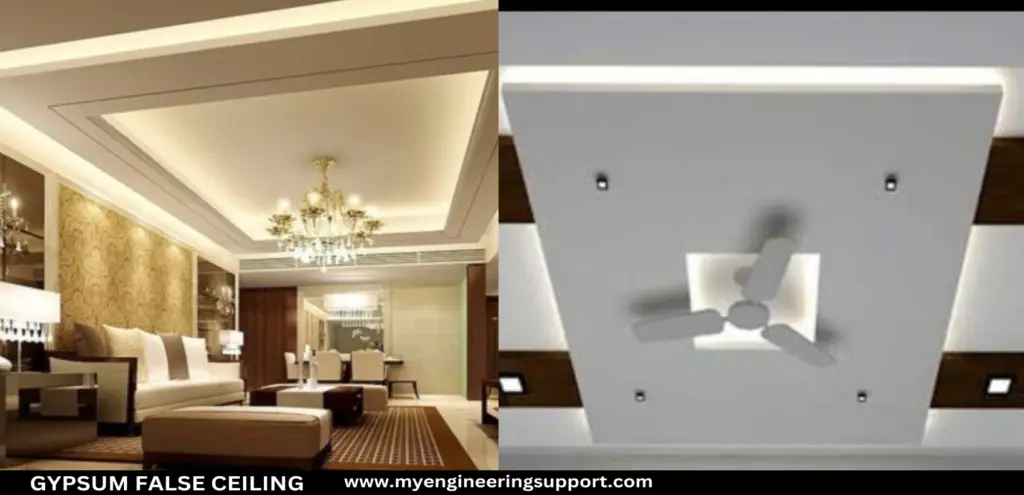

2.2). Gypsum False Ceiling
Gypsum false ceiling, also known as plasterboard or drywall ceiling is a popular choice for interior ceiling applications. It is made from gypsum, a mineral composed of calcium sulfate dihydrate, which is processed into boards and used to create a suspended ceiling structure.
Gypsum false ceilings offer several advantages, making them a preferred option in residential, commercial, and institutional buildings. They provide a smooth and seamless finish, enhancing the aesthetics of a space. Gypsum boards can be easily cut, shaped, and molded into various designs, allowing for creative and customized ceiling solutions.
One of the main benefits of gypsum false ceilings is their fire-resistant properties. Gypsum is inherently fire-resistant, and the boards used in false ceilings are designed to provide additional fire protection. This makes gypsum false ceilings a safer choice for buildings, as they can help contain the spread of fire and offer valuable evacuation time.
Gypsum false ceilings also contribute to acoustic insulation. The porous nature of gypsum boards helps in absorbing sound, reducing noise transmission between rooms or floors. This feature makes gypsum false ceilings popular in areas where noise control is important, such as offices, theaters, and educational institutions.
In terms of installation, gypsum false ceilings are relatively quick and convenient. They are lightweight, which makes handling and installation easier. The boards are typically suspended from a metal framework using a grid system, allowing for easy access to electrical and plumbing installations above the ceiling.
In terms of cost, gypsum false ceilings are generally considered cost-effective compared to other ceiling materials. The price may vary depending on factors such as the thickness of the boards, design complexity, and labor charges.
In conclusion, gypsum false ceilings offer a combination of aesthetic appeal, fire resistance, acoustic insulation, and ease of installation, making them a popular choice for modern interior ceiling applications.

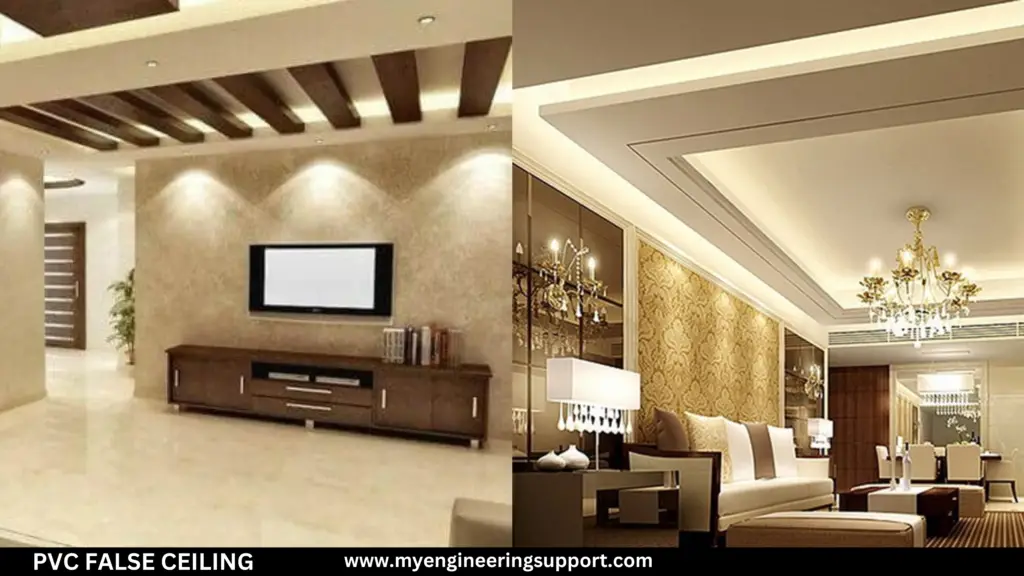

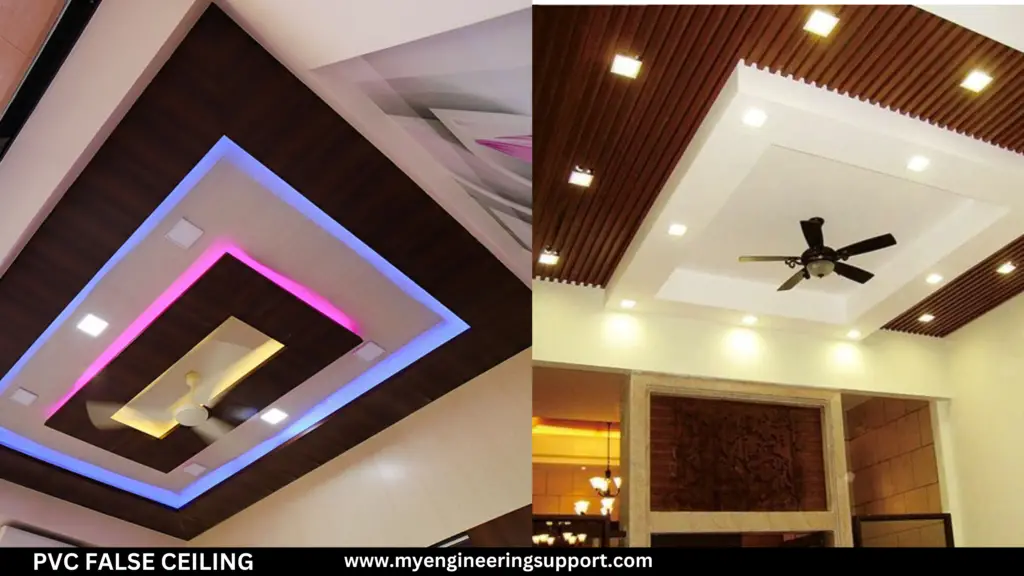

2.3). PVC false ceilings
PVC false ceilings, also known as Polyvinyl Chloride false ceilings, are a popular choice for both residential and commercial spaces. These ceilings are made from a type of plastic called PVC, which offers several advantages in terms of aesthetics, durability, and ease of maintenance. PVC false ceilings have gained popularity due to their versatility, affordability, and ability to create modern and attractive interior spaces.
PVC false ceilings come in the form of panels that are installed beneath the main ceiling, creating a suspended ceiling effect. These panels are available in various sizes, designs, and colors, allowing for customization and flexibility in design choices. The panels can be easily cut, shaped, and installed to accommodate lighting fixtures, air conditioning vents, and other utilities.
One of the key advantages of PVC false ceilings is their aesthetic appeal. They provide a smooth and uniform surface that can enhance the overall look of a room. PVC panels can be embossed with different textures, patterns, or decorative designs, allowing for creative and visually appealing ceiling options. They can be painted or laminated to achieve the desired color scheme, creating a cohesive and stylish interior.
Another advantage of PVC false ceilings is their durability. PVC is a robust material that is resistant to moisture, termite infestation, and fungal growth. This makes PVC false ceilings suitable for installation in areas with high humidity, such as bathrooms, kitchens, or basements. Additionally, PVC panels are easy to clean and maintain, requiring simple wiping with a damp cloth to remove any dust or stains.
PVC false ceilings also offer thermal insulation properties, helping to maintain a comfortable indoor temperature. They can help reduce heat transfer between different levels of a building, potentially contributing to energy efficiency and cost savings in terms of heating and cooling.
Furthermore, PVC false ceilings are relatively easy to install. The lightweight nature of PVC panels makes them convenient to handle and install by professionals. The installation process involves suspending a metal framework from the main ceiling and attaching the PVC panels to it. This efficient installation method can save time and labor costs.
Overall, PVC false ceilings provide an affordable, durable, and visually appealing solution for enhancing the interior spaces of both residential and commercial buildings. With their versatility, easy maintenance, and various design options, PVC false ceilings have become a popular choice for those seeking modern and functional ceiling solutions.

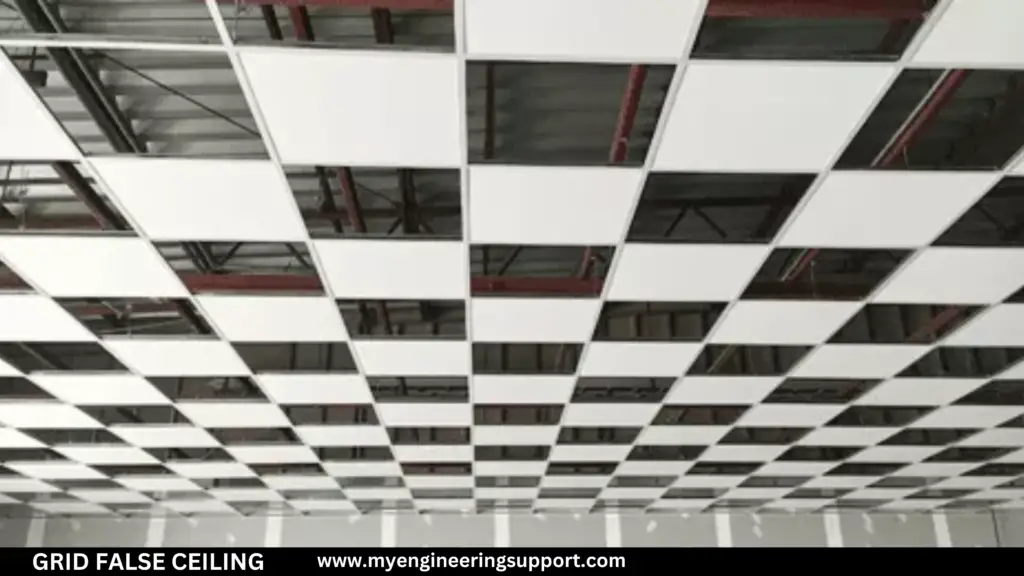

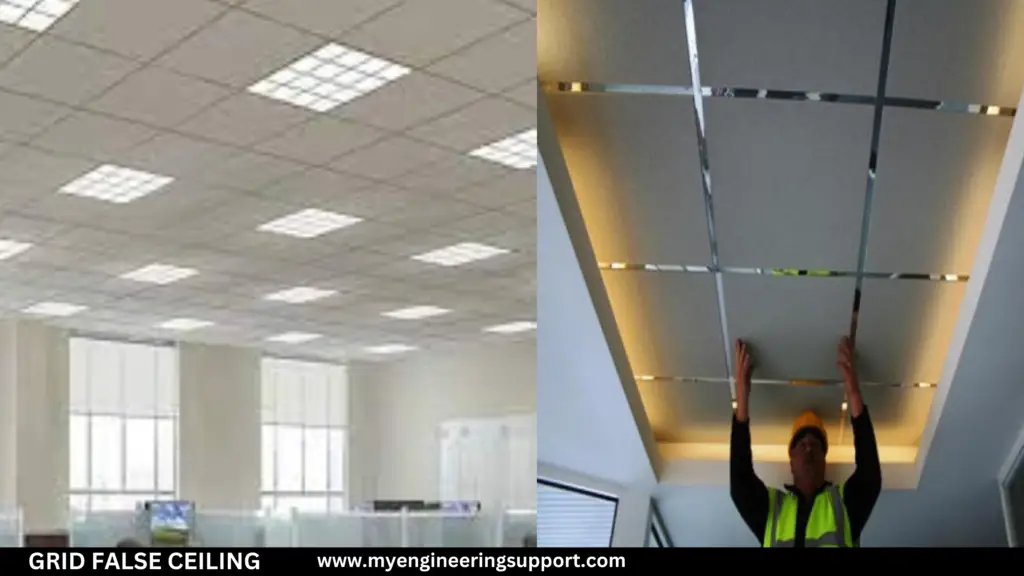

2.4). Grid false ceiling
The grid false ceiling is a popular ceiling system used in residential, commercial, and institutional buildings. It consists of a grid framework made of metal or plastic that is suspended from the main structural ceiling, creating a space between the two layers. This space allows for the installation of ceiling tiles or panels that can be easily removed or replaced when needed.
The grid false ceiling system offers several benefits, including aesthetic appeal, functionality, and ease of installation and maintenance. It provides a clean and uniform appearance to a room while concealing structural elements, electrical wiring, plumbing, and HVAC systems. The suspended design also allows for the integration of lighting fixtures, air vents, and other utilities.
A grid false ceiling is typically made up of main runners, cross tees, and perimeter channels. The main runners are the primary support elements, running parallel to the longer dimension of the room. The cross tees are placed perpendicular to the main runners, creating a grid pattern. The perimeter channels are installed along the edges of the room to provide a finished look.
POP Vs Gypsum Vs PVC Vs Grid False Ceiling
Ceiling tiles or panels are then placed within the grid framework. These tiles are available in a variety of materials, including mineral fiber, gypsum, metal, PVC, or composite materials. They come in different sizes, textures, colors, and patterns, offering flexibility in design and customization.
The installation of a grid false ceiling is relatively straightforward. The framework is suspended from the main ceiling using wires or hangers, and the main runners and cross tees are connected to form the grid pattern. The ceiling tiles or panels are then inserted into the grid, resting on the framework. This modular design allows for easy access to the space above the false ceiling for maintenance, repairs, or additions.
Grid false ceilings offer numerous advantages. They provide an aesthetic upgrade to a space, allowing for creative ceiling designs and acoustic enhancements. The suspended nature of the system also improves insulation, both thermal and sound, creating a more comfortable and efficient environment. Additionally, the grid false ceiling is often fire-resistant and resistant to moisture, contributing to safety and durability.
In summary, the grid false ceiling system is a versatile and practical solution for enhancing the appearance and functionality of interior spaces, making it a popular choice for a wide range of applications.
3). Characteristics of POP Vs Gypsum Vs PVC Vs Grid False Ceiling
1). Characteristics of POP False Ceiling
POP false ceiling is a traditional and commonly used type of false ceiling.
It is created by applying multiple layers of plaster of Paris on a metal framework or wooden battens.
POP false ceilings offer a smooth and seamless finish and they can be shaped into various designs and patterns.
They are suitable for both curved and straight ceilings and provide good sound insulation properties.
However, POP false ceilings are prone to cracks and may require regular maintenance and repairs.
2). Characteristics of Gypsum False Ceiling
A gypsum false ceiling is constructed using gypsum boards or panels that are fixed to a metal framework.
Gypsum boards are lightweight, easy to install, and provide a clean and smooth finish.
They offer good fire resistance, sound insulation, and thermal insulation properties.
Gypsum false ceilings can be easily modified or repaired as needed, and they can accommodate various lighting fixtures and ventilation systems.
They are widely used in residential and commercial spaces due to their durability and versatility.
3). Characteristics of PVC False Ceiling
PVC false ceilings are made of plastic panels or tiles that are suspended from a metal framework.
PVC panels are lightweight, waterproof, and easy to clean, making them suitable for areas with high humidity, such as bathrooms or kitchens.
They are available in various colors, designs, and textures, allowing for creative ceiling designs.
PVC false ceilings are cost-effective and require minimal maintenance.
However, they may not offer the same level of durability and fire resistance as gypsum or POP false ceilings.
4). Characteristics of Grid False Ceiling
Grid false ceilings, also known as suspended ceilings or modular ceilings, consist of a metal grid framework with ceiling tiles placed within the grid.
The metal grid is suspended from the main ceiling using hangers or wires.
Grid false ceilings provide easy access to the space above the ceiling for maintenance or repairs.
They are commonly used in commercial buildings and offices due to their functionality and practicality.
The ceiling tiles used in grid false ceilings can be made of various materials such as mineral fiber, gypsum, metal, or acoustic panels.
Grid false ceilings offer good sound absorption properties, are customizable, and allow for the integration of lighting fixtures and other utilities.
4). Difference between POP Vs Gypsum Vs PVC Vs Grid False Ceiling
1). Installation Difference between POP Vs Gypsum Vs PVC Vs Grid False Ceiling
POP ceiling involves creating a framework using wooden battens and fixing POP sheets on it. Skilled labor is required for installation.
Gypsum boards are fixed onto a metal framework using screws or adhesive. Installation is quicker and easier compared to POP.
PVC panels are usually interlocked and fixed onto a metal framework. Installation is relatively easy and quick.
Metal Grid sections are suspended from the main ceiling, and ceiling tiles or panels are placed within the grid. Installation requires skill and precision.
2). Aesthetics Difference between POP Vs Gypsum Vs PVC Vs Grid False Ceiling
POP ceilings offer a smooth and seamless finish. They can be molded into various shapes and designs, allowing for intricate detailing.
Gypsum ceilings provide a clean and contemporary look. They can be painted or adorned with decorative elements.
PVC ceilings offer a smooth and glossy finish. They are available in various colors and designs, providing a modern and sleek appearance.
Grid ceilings offer a modular and structured look. They allow for easy access to utilities above the ceiling and can accommodate various types of tiles or panels.
3). Durability Difference between POP Vs Gypsum Vs PVC Vs Grid False Ceiling
POP ceilings are prone to cracking and may require occasional repairs and maintenance.
Gypsum ceilings are durable, resistant to moisture, and less prone to cracks compared to POP.
PVC ceilings are durable, water-resistant, and low-maintenance. They do not crack or warp easily.
Grid false ceilings are sturdy and can withstand heavy loads. The tiles or panels used within the grid may vary in durability depending on the material chosen.
4). Cost Difference between POP Vs Gypsum Vs PVC Vs Grid False Ceiling
POP false ceilings are relatively cost-effective compared to other options.
Gypsum false ceilings are cost-effective and offer good value for money.
PVC false ceilings are also affordable and provide a budget-friendly option.
Grid false ceilings can have higher installation costs compared to other options due to the complexity of the framework.
POP Vs Gypsum Vs PVC Vs Grid False Ceiling
5). Acoustic Insulation Difference between POP Vs Gypsum Vs PVC Vs Grid False Ceiling
POP false ceilings offer limited sound absorption and insulation properties. They have a low Noise Reduction Coefficient (NRC) and may not significantly reduce sound transmission.
Gypsum false ceilings exhibit better sound absorption characteristics compared to POP. They have a higher NRC value, meaning they can help reduce sound transmission and reverberation to some extent.
PVC false ceilings have limited acoustic insulation properties. They do not absorb sound well and may not contribute significantly to reducing noise transmission.
The metal Grid used in false ceilings does not contribute to acoustic insulation directly. However, the space created between the main ceiling and the false ceiling can be filled with sound-absorbing materials, such as mineral wool, to improve sound absorption and reduce noise transmission.
6). Thermal Insulation Difference between POP Vs Gypsum Vs PVC Vs Grid False Ceiling
POP false ceilings provide minimal thermal insulation. They do not have inherent insulating properties and are primarily used for decorative purposes.
Gypsum boards have a relatively low thermal conductivity, which means they can provide moderate thermal insulation. They can help in reducing heat transfer between the room and the external environment.
PVC false ceilings offer minimal thermal insulation. They are not designed for providing thermal resistance and are primarily used for their waterproof and easy-to-clean properties.
Metal Grid false ceilings do not provide thermal insulation on their own. However, they can accommodate the installation of thermal insulation materials like fiberglass or foam, which can enhance the overall thermal performance of the ceiling assembly.
False ceilings are made from different materials, which offer unique advantages and considerations based on their properties and applications.
POP False Ceiling
POP false ceilings are known for their smooth finish and ability to create intricate designs.
They are highly customizable and can be molded into various shapes and patterns.
POP ceilings are relatively affordable and widely used in residential settings.
However, they may not be suitable for areas with high moisture content as they can be prone to damage.
Gypsum False Ceiling
Gypsum false ceilings are lightweight, durable, and provide excellent fire resistance.
They are relatively easy to install and offer good sound insulation properties.
Gypsum boards allow for easy integration of lighting fixtures and other utilities.
They are commonly used in commercial spaces, offices, and institutional buildings.
Gypsum false ceilings can be more expensive compared to other materials, but they offer long-term durability.
PVC False Ceiling
PVC false ceilings are lightweight, low-cost, and easy to install.
They are resistant to moisture, making them suitable for areas with high humidity, such as bathrooms or kitchens.
PVC ceilings require minimal maintenance and can be cleaned easily.
However, they may lack the aesthetic appeal of other materials and are often used in utility areas or commercial spaces where appearance is not the primary concern.
Grid False Ceiling
Grid false ceilings, also known as suspended ceilings, consist of a metal framework suspended from the main ceiling.
They offer excellent flexibility for integrating utilities, such as electrical wiring, air conditioning ducts, or lighting fixtures.
Grid ceilings can be combined with various panel materials, including gypsum, PVC, or metal, to achieve the desired aesthetic and functional requirements.
They are commonly used in commercial buildings, offices, and large spaces where utility integration and accessibility are crucial.
When selecting the appropriate false ceiling material, it is essential to consider factors such as the desired aesthetics, budget, functionality, maintenance requirements, and environmental conditions of the space. Consulting with professionals or experts in the field can help in making an informed decision based on specific needs and preferences.
So friends this was the basic comparison between POP Vs Gypsum Vs PVC Vs Grid False Ceiling. I hope this article will definitely help you. If you like this information please share it with your friends & If I have missed any information or you have any suggestions then you can mention them in the comments section for more such blog posts just click subscribe to myengineeringsupport.com so that you won’t miss any new post.
