Introduction

A plinth beam is a reinforced concrete beam that is constructed at the ground level of a building. It runs along the entire perimeter of the structure, connecting and providing stability to the individual columns or footings.

Plinth beams are an integral part of the structure and are essential for ensuring stability, preventing settlement issues, and load transfer, and maintaining the overall integrity of the structure.

The purpose of a plinth beam is to distribute the load of the superstructure evenly to the foundation. It acts as a load-bearing element, transferring the vertical loads from the walls and columns to the foundation, while also resisting any lateral forces such as earthquakes or wind force

A 1000sqft House Plinth Beam Cost is about Rs.110720.

How To Find 1000Sqft House Plinth Beam Cost

1000sqft House Plinth Beam Cost can vary depending on several factors such as the location, materials used, labor costs, and specific design requirements. Additionally, prices can vary from one region to another.

To get the 1000sqft House Plinth Beam Cost we need to find the individual costs of materials, labor, and other additional charges.

1). Material Costs – The cost of materials for the plinth beam, including reinforcement steel bars, cement, sand, and aggregate.

2). Labor Costs – The cost of hiring skilled labor to construct the plinth beam. This can vary depending on the local labor rates and the complexity of the design.

3). Additional Costs – Miscellaneous costs such as transportation of materials, scaffolding, and equipment rental, if required.

Calculation of 1000sqft House Plinth Beam Cost

For the calculation of the cost of a 1000 sq ft house plinth beam, first, we find the total volume of the plinth beam.

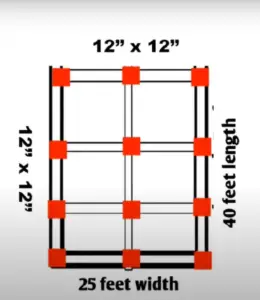

In the figure, we take a 1000 sq ft plinth area that contains six rooms, and each room is 12 ft. × 12 ft. in size. The cross-section area of plinth beams is 1 ft × 1 ft.

Calculation of volume

Here total plinth area is

            25 × 40 = 1000 sq ft.

The total length of the plinth beam

            L =   ( 3 × 40 + 4 × 22 )

            L =  208 Rft

            B = 1 ft

            D = 1 ft

The total volume of concrete required will be –

            V = L × B × D

                = 208 × 1 × 1

                = 208 Cft

Dry vol. of concrete = 208 × 1.54 320.32 Cft

Converting in cum

             We know 1 cum = 35.3147 Cft.

            321 Cft = 9.08 cum.

Calculation of Material Cost.

For the calculation of the material cost of a 1000 sq ft house plinth beam, we need the analysis of quantity and rate of each material required like – cement, sand, aggregate, steel, etc.

The density of concrete is 1440 kg. per cum

Considering M 20 mix ratio 1: 1.5 : 3 ( cement: sand: aggregate )

(A) Cement cost.

Part of cement/sum of ratio × dry concrete volume × concrete density

= 1/ 5.5 × 9.08 ×1440

= 2377 kg.

No. of bag = 2377/ 50 = 47.5 bags.

Take 48 bags of cement. The cost of cement

            = 48 × 400 = Rs. 19200

(B) Sand cost

            Part of sand/sum of ratio × dry vol. of concrete

                        = 1.5/ 505 × 321

                        = 87. 54 Cft

The price of sand varies between Rs. 20 to Rs. 60 according to the location to location and availability of sand

Here we take the average price of Rs. 45 per Cft.

The cost of sand = 87.54 × 45 = Rs. 3940

(C) Aggregate cost.

            Part of aggregate/sum of ratio × dry vol. of concrete.

                        = 3/ 5.5 × 321 = 175 cft.

The price of aggregate varies between Rs. 40 to 80 according to location and availability of aggregate

Here we take an average rate of Rs. 60 per Cft.

The cost of aggregate   = 175 × 60

                                                = Rs. 10500

The total cost of concrete material

                        = 19200 + 3940 + 10500

                        = Rs. 33640

(D)  Steel cost.

Steel is required 1.75% of the total volume of concrete.

The rate of steel reinforcement in the market is about Rs. 70 per kg.

Here the volume of concrete = 208 Cft = 5.89 cum.

The weight of steel reinforcement required

= Total vol. of concrete × percentage vol. of steel × density of steel.

= 5.89 ×  × 7850

= 809.123 kg. , take 810 kg.

Cost of steel = 810 × 70

                        = Rs. 56700

Total material cost equal to

                        Concrete cost + steel cost

                                    = 33640 + 56700

                          = Rs. 90340

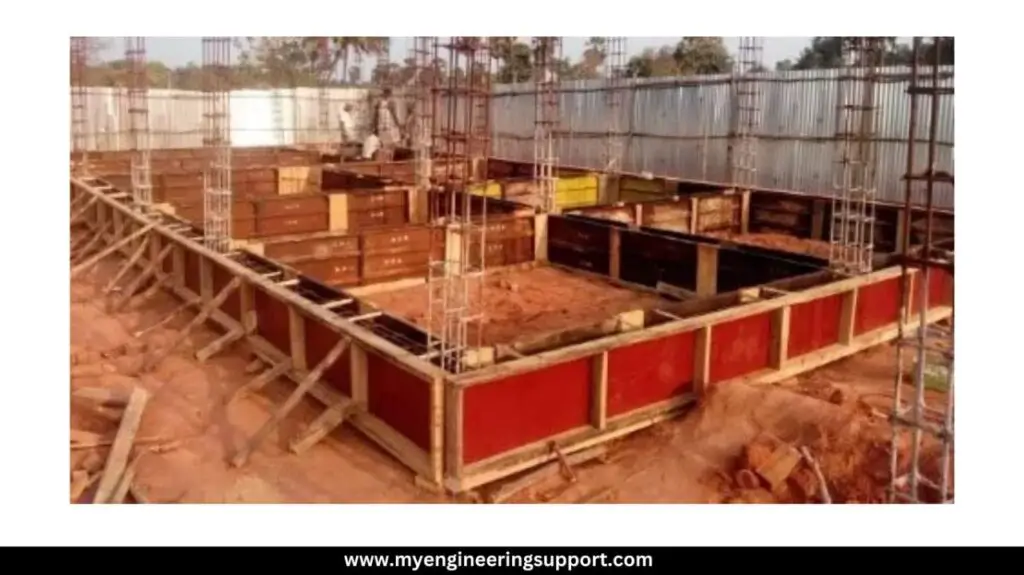

Calculation of Shuttering Cost

Shuttering required is 2 times more than the total length of the plinth beam

Quantity of shuttering = 416 sq ft

Shuttering rate varies from Rs. 15 to Rs. 20 per sq ft

Here we consider the maximum shuttering rate = Rs. 20 per sq ft

Then shuttering cost = 416 × 20

      = Rs. 8320

Calculation of Labor Cost.

(A) Steel labor cost

The steel labor rate is Rs. 8 to 10 per kg.

The cost of steel labor = 810 × 10

                        = Rs.  8100

(B) Concrete pouting labor cost

The concrete pouring labor rate is Rs. 15 to 20 per sq ft

Concrete pouring labor cost = Quantity of concrete × labor rate

                                                            = 208 × 20 = Rs. 4160

Total labor cost = 8100 + 4160

                              = Rs. 12060

Now, the total cost of a 1000 sq ft house plinth beam equal to

                        Material cost + shuttering + labor cost

                                    90340 + 8320 + 12060

                                    = Rs.110720

So, the total cost of a 1000 sq ft house plinth beam is about Rs.110720 in 2023

Conclusion

This article is to understand the approximate cost calculation procedure of the plinth beam. The cost of the plinth beam varies depending on its size, location, concrete grade and percentage of reinforcement, etc.

Plinth beams are an integral part of the structure and are essential for ensuring stability, preventing settlement issues, and load transfer, and maintaining the overall integrity of the structure.

Here the general steps involved in calculating the material cost of a 1000 sq ft house plinth beam are mentioned above. Please note that these calculations are approximate and may vary based on specific design requirements and local construction practices.

The total cost of a 1000 sq ft house plinth beam is about Rs. 106600, and for a multi-story building is about Rs. 166500 in 2023.

To determine the qty of materials required for the plinth beam of a 1000 square feet house, several factors need to be considered, including the dimensions of the beam, reinforcement details, and concrete mix proportions. In this article, we analyze the calculation of material quantity and 1000sqft House Plinth Beam Cost in 2023 in detail. But in brief, the cost of a 1000 sq ft house plinth beam is mentioned here below. –

   For General Building

Requirement           Expenditure

Concrete                      33640

Steel                            56700

Shuttering                   8320

Labor                           12060

 Total                   110720

Contractor’s profit  10 %

Other expenditures 8 %

Total cost                  Rs.130650
