1500Sqft House Plinth Beam Cost in 2023 – Materials + Labor – Quick Method

1500Sqft House Plinth Beam Cost in 2023

Introduction

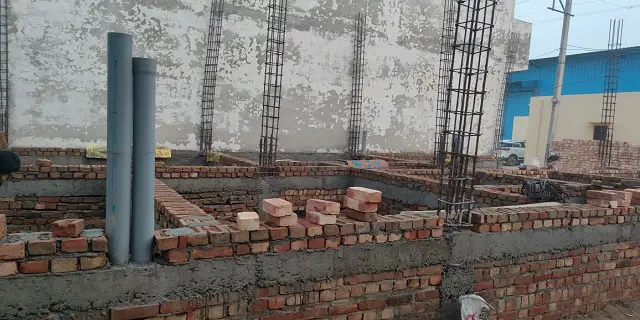

A plinth beam, also known as a tie beam or grade beam, is a reinforced concrete beam that is constructed at or just above ground level in a building’s foundation. It runs along the perimeter of the structure and serves several important purposes:

1500Sqft House Plinth Beam Cost
  • Load distribution.
  • Preventing soil movement.
  • Protecting the structure.
  • Acts as a tie between columns.
  • Preventing termite infestation.
  • Minimizing damage during earthquakes.

The size and reinforcement of the plinth beam depend on the load it needs to carry, the type of soil, and the building’s design. Proper construction and reinforcement of plinth beams are essential to ensure the stability and longevity of the building. A 1500sqft House Plinth Beam Cost about Rs.1,44,452/- in 2023.

How To Find 1500Sqft House Plinth Beam Cost

1500Sqft House Plinth Beam Cost in 2023
1500Sqft House Plinth Beam Cost in 2023

To get the 1500sqft House Plinth Beam Cost we need to find the individual costs of materials, labor, and other additional charges.

1500Sqft House Plinth Beam Cost in 2023
1500Sqft House Plinth Beam Cost in 2023

The cost of materials for the plinth beam, including reinforcement steel bars, cement, sand, and aggregate.

2). Labor Costs – The cost of hiring skilled labor to construct the plinth beam. This can vary depending on the local labor rates and the complexity of the design.

1500Sqft House Plinth Beam Cost in 2023

3). Additional Costs – Miscellaneous costs such as transportation of materials, scaffolding, and equipment rental, if required.

1500Sqft House Plinth Beam Cost in 2023

Calculation of 1500sqft House Plinth Beam Cost

For the calculation of the cost of a 1500 sq ft house plinth beam, first, we find the total volume of the plinth beam.

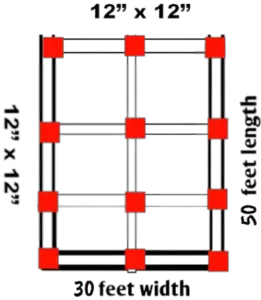

In the figure, we take a 1500 sq ft plinth area that contains six rooms, and each room is 12 ft. × 12 ft. in size. The cross-section area of plinth beams is 1 ft × 1 ft.

Calculation of volume

Suppose,

Planning Area – 50 × 30 = 1500 sq ft.

Plinth Beam Size – 12” x 12”

Plinth Beam Area – 1′ x 1′ = 1sqft




The total Beam length = (3 × 50′ + 4 × 27′) = 258Feet

            L =  258 Rft

            B = 1 ft

            D = 1 ft

The total volume of concrete required will be (V) = L × B × D

            = 258 × 1 × 1 = 258 Cft

Dry vol. of concrete = 258 × 1.54 = 397.32 Cft

Converting in cum

             We know 1 cum = 35.3147 Cft.

             398 Cft = 11.24 cum.

1). Calculation of Material Cost

For the calculation of the material cost of a 1500 sq ft house plinth beam, we need the analysis of quantity and rate of each material required like – cement, sand, aggregate, steel, etc.

1500Sqft House Plinth Beam Cost in 2023

The density of concrete is 1440 kg. per cum

Considering M 20 mix ratio 1: 1.5 :3 ( cement: sand: aggregate )

(A) Cement Cost

Part of cement/sum of ratio × dry concrete volume × concrete density

= 1/ 5.5 × 11.24 ×1440 = 2942 kg.

No. of bags = 2942/ 50 = 58.84 or 59bags.

Price of 1 Cement bag = Approx. Rs.400 to 420/-bags.(ACC/Ambuja/Ultratech Brands).

Total cost of cement = 59 x 420 = Rs.24,780/-

(B) Sand Cost

Part of sand/sum of ratio × dry vol. of concrete

                = 1.5/5.5 x 398 = 108. 54 Cft

The price of sand varies between Rs. 50 to Rs. 60 according to the location to location and availability of sand

Here we take the maximum price of Rs. 60 per Cft.

Total cost of Sand = 108.54 x 60 = Rs.6512/-

(C) Aggregate Cost

Part of aggregate/sum of ratio × dry vol. of concrete.

                        = 3/ 5.5 × 398 = 217 cft.

The price of aggregate varies between Rs. 40 to 80 according to location and availability of aggregate

Here we take an average rate of Rs. 60 per Cft.

The cost of aggregate   = 217 × 60 = Rs. 13,020

Total Cost of Concrete Material

1500Sqft House Plinth Beam Cost in 2023

Total Cost = 24780 + 6512 + 13020 = Rs.44,312/-

Per Cft Cost = 44312/258 = Rs.171/- Cft

Per Cum Cost = 44312/7.30 = Rs.6070/-Cum.

(2)  Steel Quantity & Cost

Steel is required 1.75% of the total volume of concrete.

The rate of steel reinforcement in the market is about Rs. 70 per kg.

Here the volume of concrete = 258 Cft or 7.30Cum (after conversion in cum).

Steel Quantity = 7.30 x 1.75% = 0.12775 cum.

The density of Steel – 7850kg/cum.

The weight of steel reinforcement required

Quantity of steel in kg – 0.12775 x 7850 = 1002kg.

So, Total Cost of Steel = 1002 x 65 = Rs.65,184/-

Total material cost equal to

Concrete cost + steel cost

Total Concrete material cost = Rs.44,312/-

Total Steel Reinforcement cost = Rs.65,184/-

Total Materials cost for plinth beam = 44312 + 65184 = Rs.1,09,496/-

2). Calculation of Shuttering Cost

Total Beam Length – 258 feet.

Shuttering required is 2 times more than the total length of the plinth beam

Shuttering Qty – 516 feet.

Depth of Beam – 1 feet.

Area of Beam – (L x D) 516 x 1 = 516Sqft

Shuttering rate varies from Rs. 15 to Rs. 20 per sq ft (Rates vary from city to city)

Here we consider the maximum shuttering rate = Rs. 20 per sq ft

Then shuttering cost = 516 × 20 = Rs. 10,320

3). Calculation of Labor Cost

(A) Steel labor cost

The steel labor rate is Rs. 6 to 8 per kg.

Total Steel Labor Cost = Steel qty x labor rate

Total Steel Labor Cost = 1002 x 8 = Rs.8016/-

(B) Concrete pouting labor cost

The concrete pouring labor rate is Rs. 50 to 60 per Cft

Concrete pouring labor cost = Quantity of concrete × labor rate

Total Concrete Labor Cost = 258 x 60 = Rs.15,480/-

Total Labor Cost =Steel Labor Cost + Concrete Labor Cost

Total Labor Cost = 8016 + 15480 = Rs.23496/-

2nd Method

Labor Cost is always 20 to 25% of materials cost

Total materials cost = Rs.1,09,496/-

If we consider labor costs 22.5%

Labor cost = Rs.1,09,496 x 22.5% – Rs.24,636/-

Now, the total cost of a 1500 sq ft house plinth beam equal to

Material cost + shuttering + labor cost

= 109496 + 10,320 + 24636 = Rs.1,44,452/-

So, the total cost of a 1500 sq ft house plinth beam is about Rs.1,44,452/- in 2023.

Cost of plinth beam per sqft – Cost of plinth beam/ Area of beam

= 144452/258 = Rs.560/-Sqft.

Conclusion

This article is to understand the approximate cost calculation procedure of the plinth beam. The cost of the plinth beam varies depending on its size, location, concrete grade and percentage of reinforcement, etc.

Plinth beams are an integral part of the structure and are essential for ensuring stability, preventing settlement issues, and load transfer, and maintaining the overall integrity of the structure.

Here the general steps involved in calculating the material cost of a 1500 sq ft house plinth beam are mentioned above. Please note that these calculations are approximate and may vary based on specific design requirements and local construction practices.

The total cost of a 1500 sq ft house plinth beam is about Rs.1,44,452/- in 2023.

To determine the qty of materials required for the plinth beam of a 1500 square feet house, several factors need to be considered, including the dimensions of the beam, reinforcement details, and concrete mix proportions. In this article, we analyze the calculation of material quantity and 1500sqft House Plinth Beam Cost in 2023 in detail. But in brief, the cost of a 1500 sq ft house plinth beam is mentioned here below. –

   For General Building

Requirement           Expenditure

Concrete                          44312

Steel                                  65184

Shuttering                        10320

Labor                                 24636

 Total                       Rs.1,44,452

Contractor’s profit  10 %

Other expenditures 8 %

Total cost                  Rs.170453.36

So friends this was the Estimate of the 1500 sqft House Plinth Beam Cost in 2023. I hope this article will definitely help you. If you like this information please share it with your friends & If I have missed any information or you have any suggestions then you can mention them in the comments section for more such blog posts just click subscribe to myengineeringsupport.com so that you won’t miss any new post.
